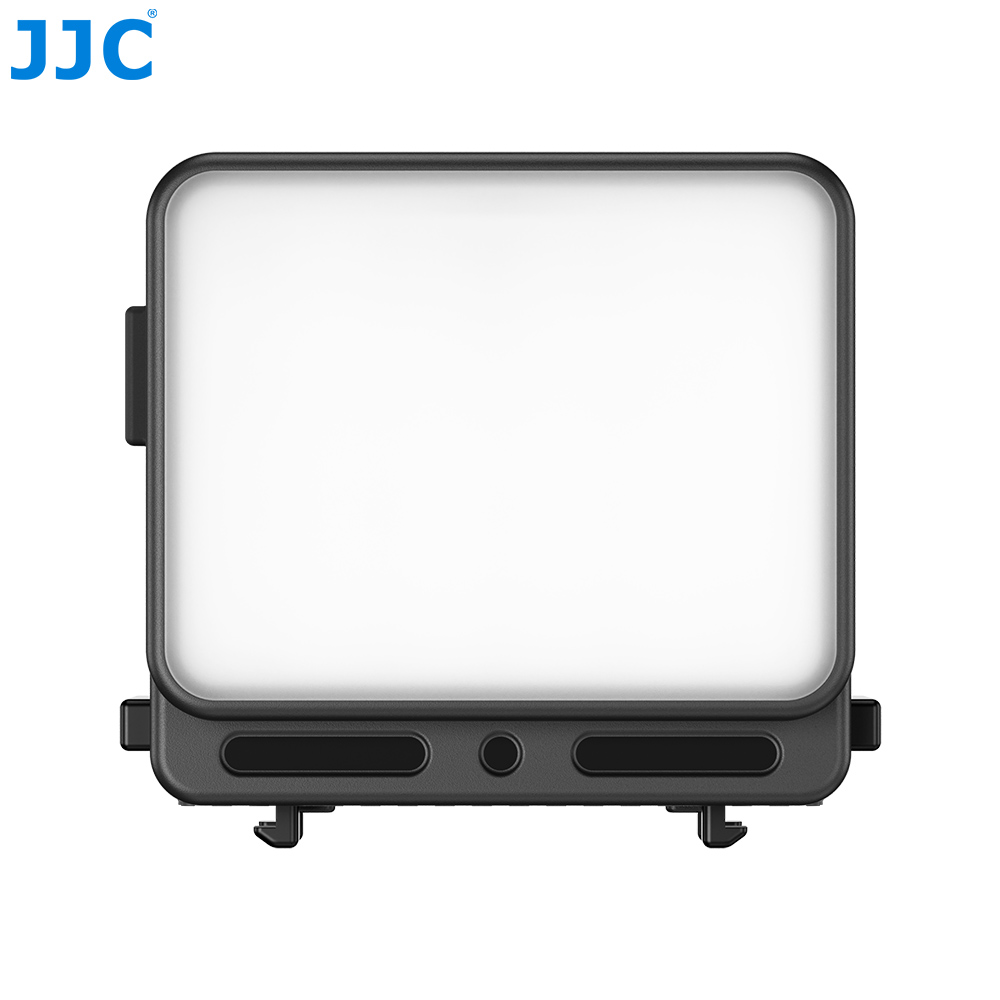

Mini LED Light

Specially designed for Insta36. X4 Air/X5/ACE PRO/ACE PRO2/ACE;Magnetic quick-release design for quick attachment;20 high-quality LED beads for soft, even lighting and enhanced image quality;High color rendering index (Ra95+) for accurate color reproduction;Flicker-free design ensures stable video recording without strobing

  • Model: LED-AP
  • Bar Code: 6950291553584

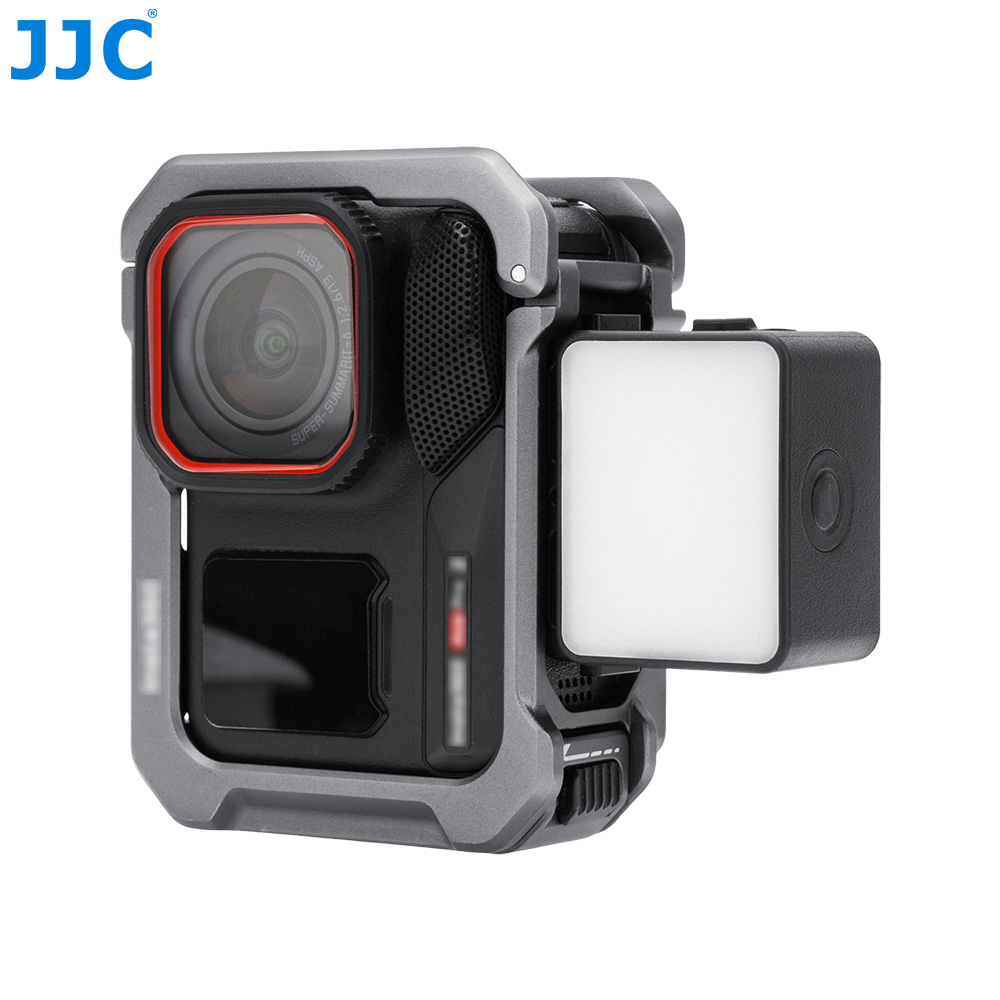

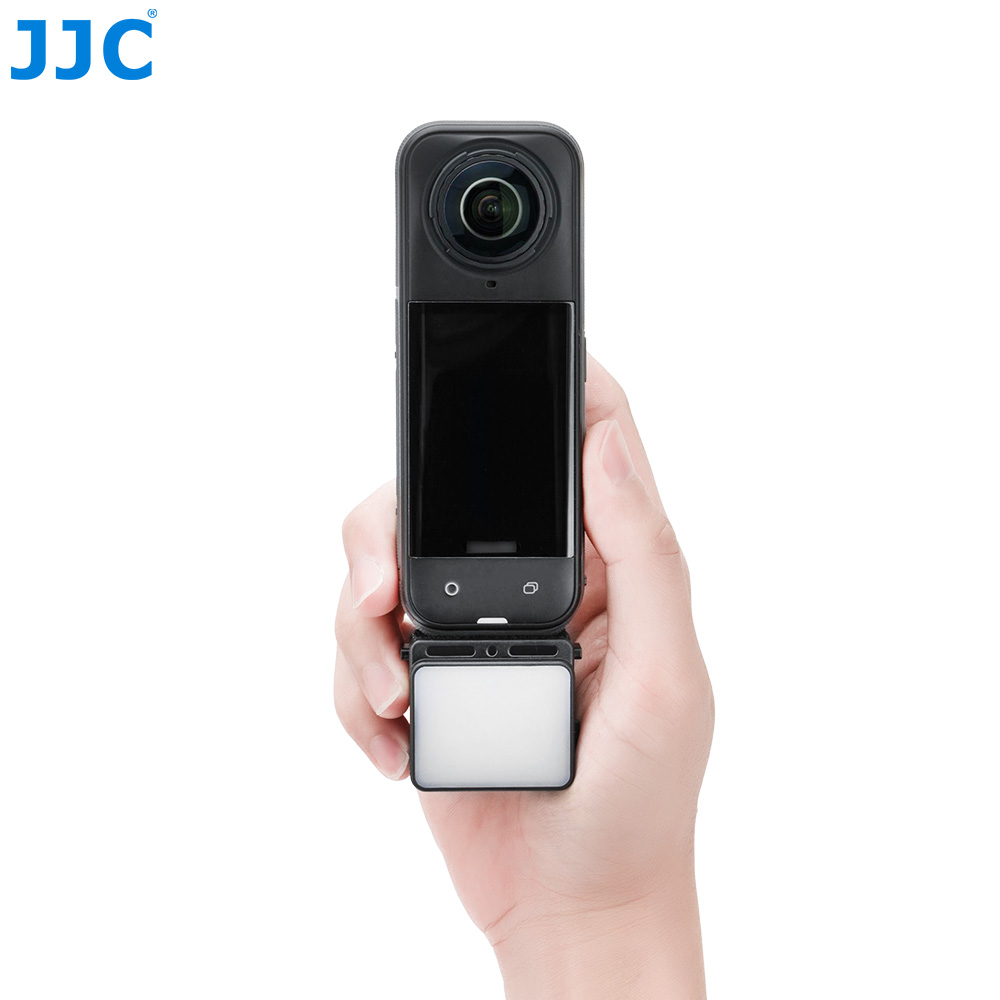

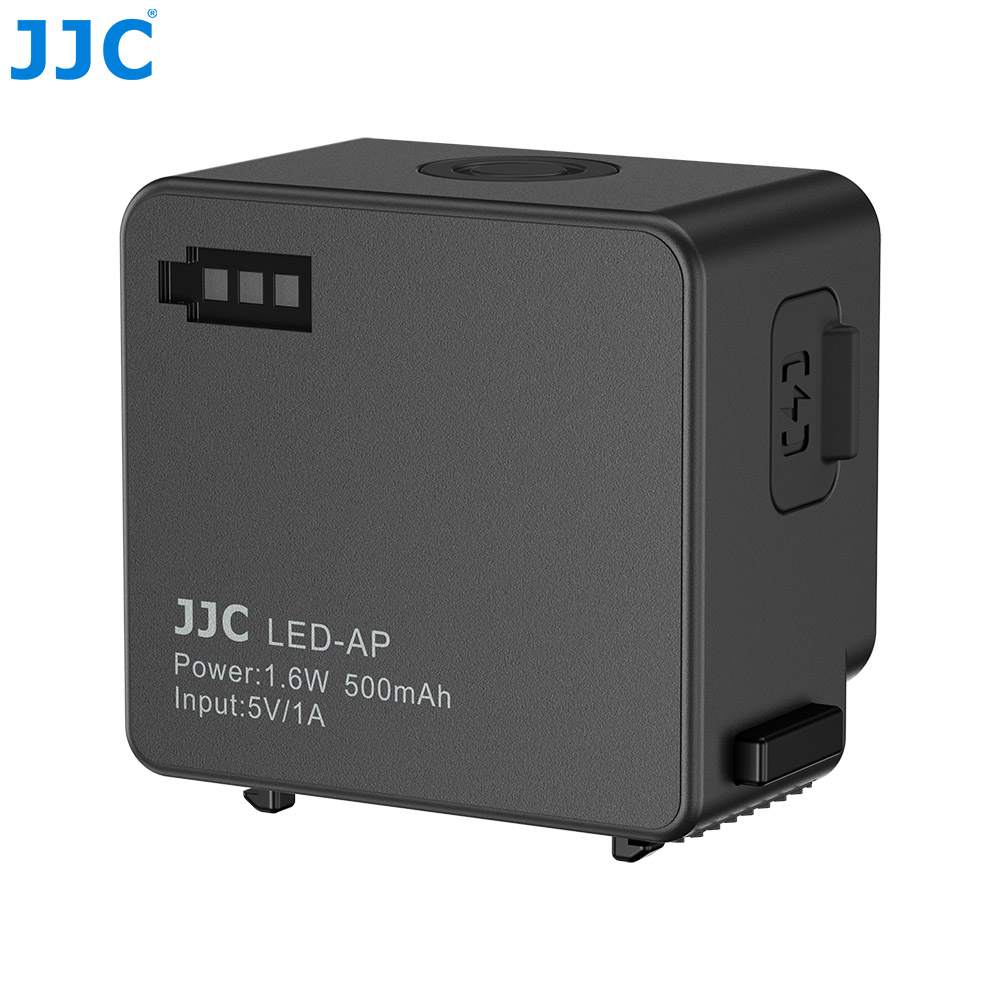

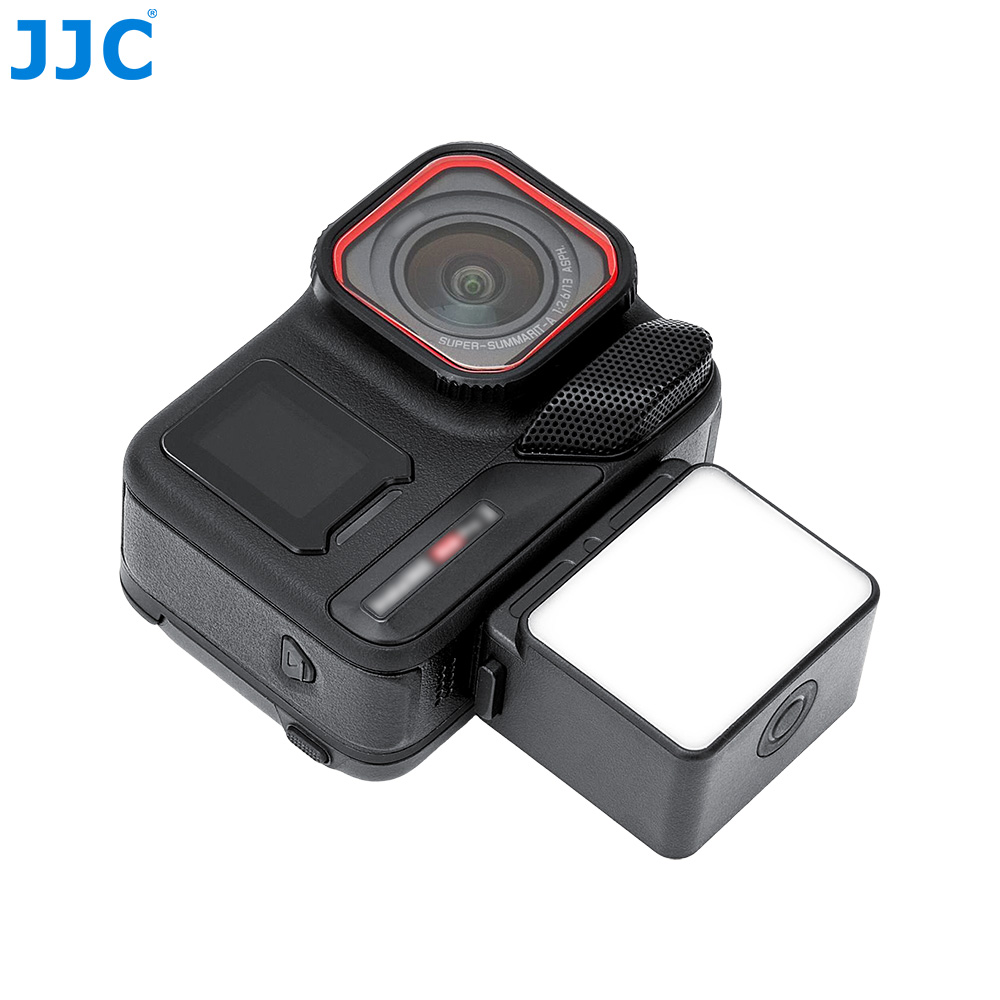

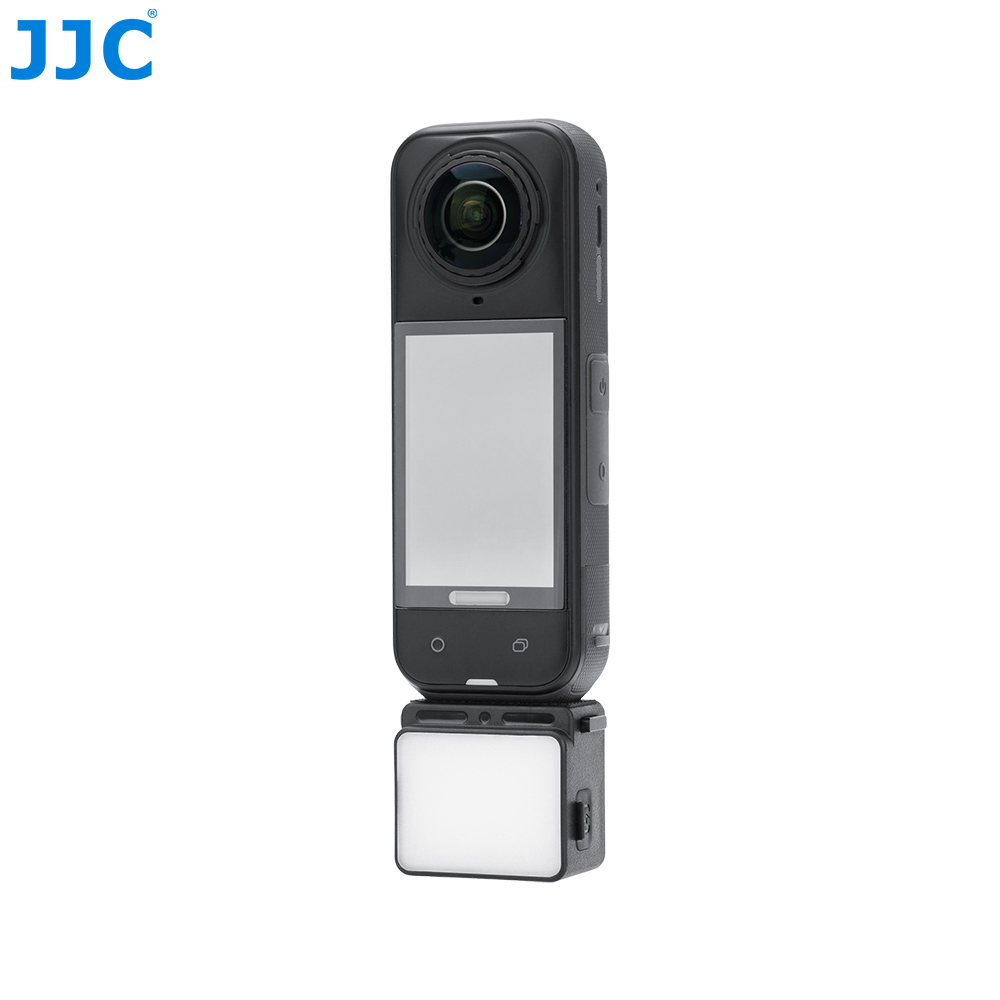

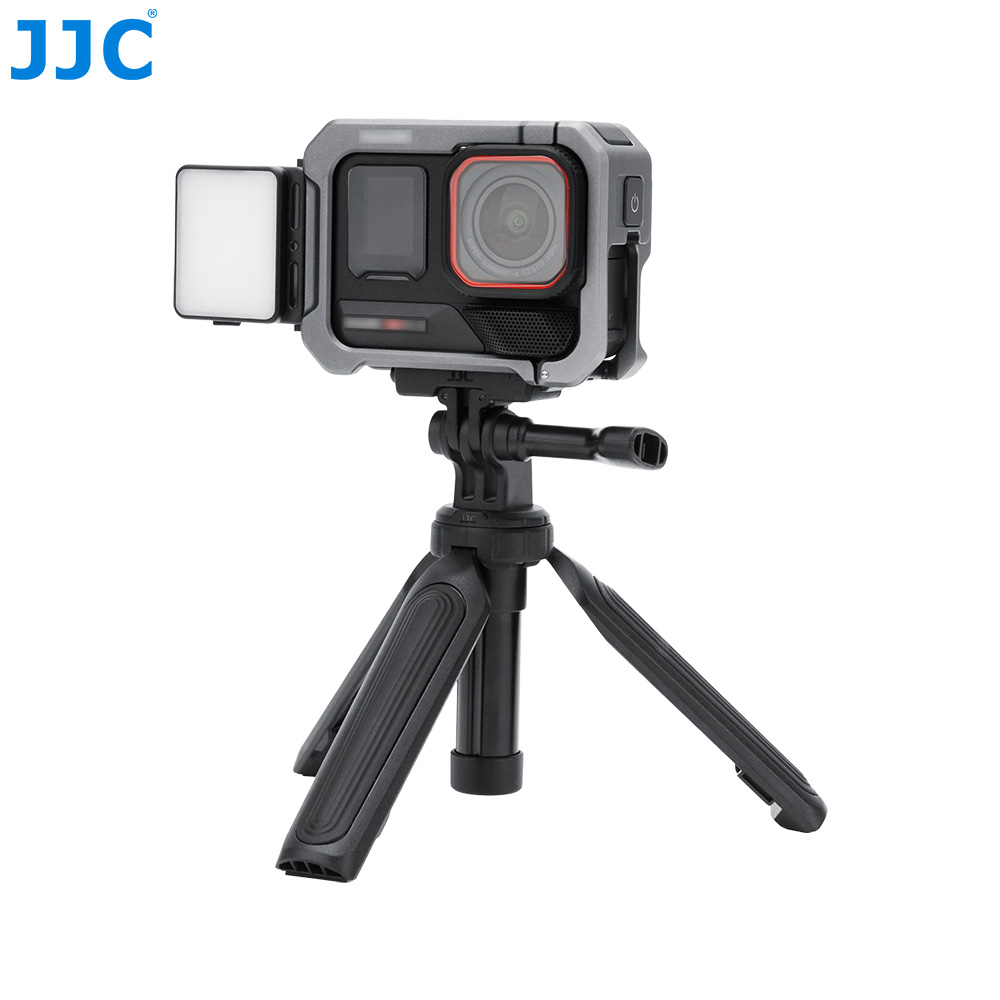

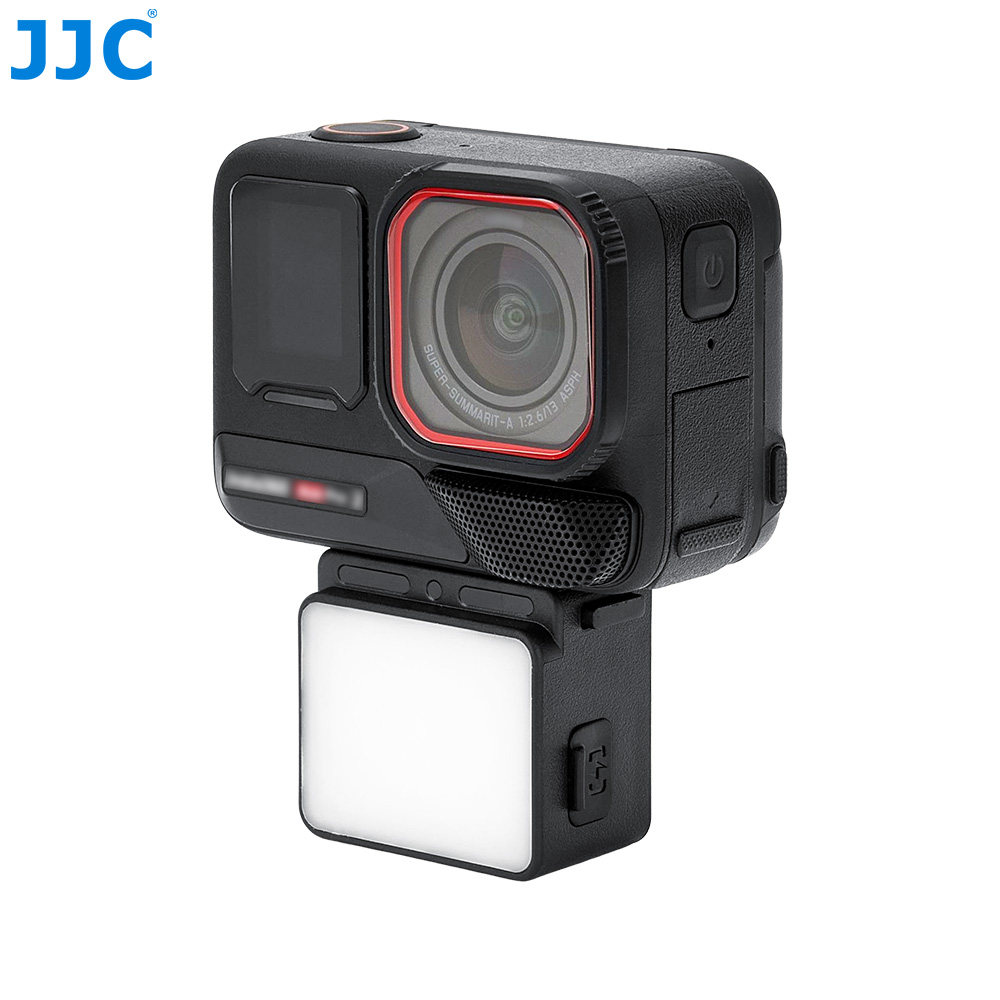

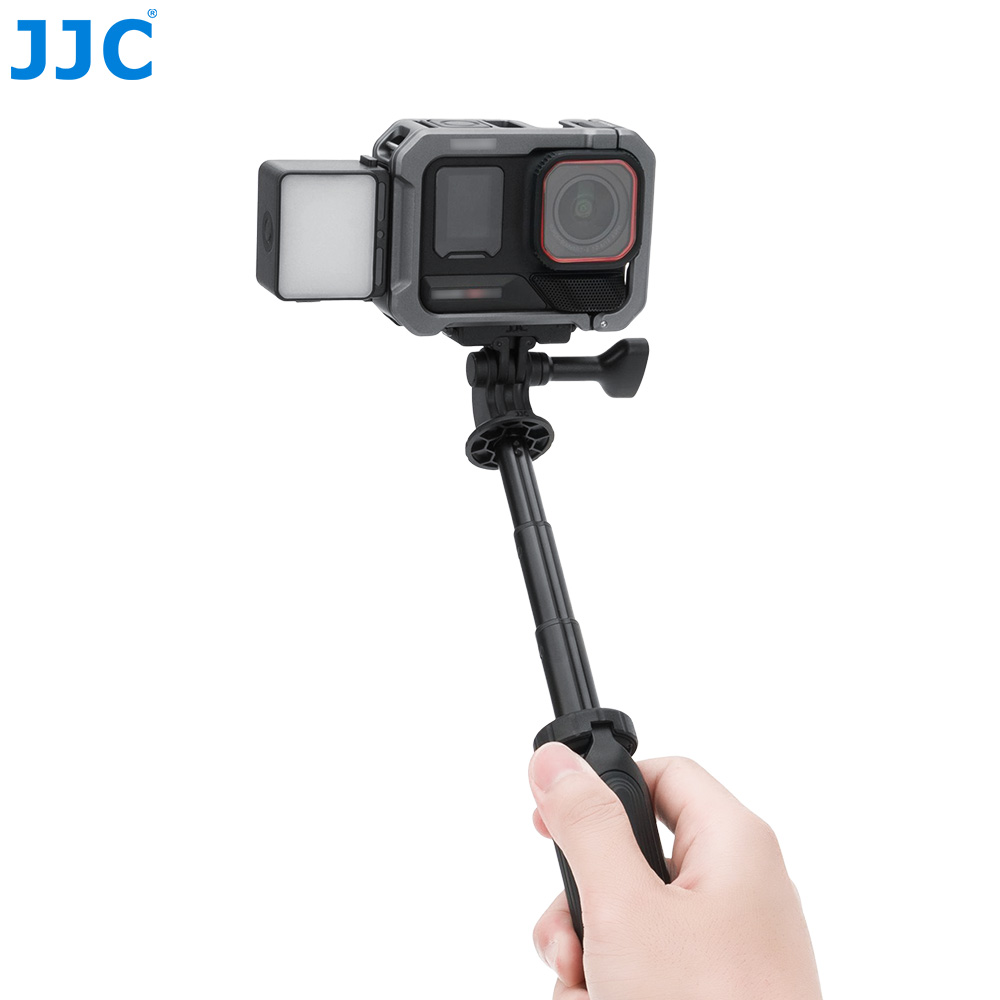

JJC LED-AP Mini LED Light is specially designed for Insta36. X4 Air/X5/ACE PRO/ACE PRO2/ACE. Featuring a magnetic quick-release design, it snaps into place instantly and lets you start shooting anytime. Compact and lightweight, it is easy to carry for outdoor use. Equipped with 20 high-quality LED beads, the light delivers soft and even illumination, effectively enhancing image quality. With a high color rendering index (Ra95+), it reproduces natural colors. The color temperature is maintained at 6500K ± 200K, ensuring bright and natural results. Its maximum illuminance reaches 195Lux at 0.5m, and it offers three brightness levels (50% / 75% / 100%) for flexible adjustment. The flicker-free design guarantees stable performance during video shooting. Operation is simple with a single button. Long press to power on/off, and short press to switch modes. It also includes an SOS mode, which is useful in emergencies. Powered by a 500mAh lithium battery, it fully charges in about 1 hour and provides over 1 hour of continuous use at maximum brightness. The USB Type-C charging port makes recharging convenient. The light also supports a power-off memory function, restoring the last used brightness mode when turned on again. In addition, this product features IPX5 water resistance, meeting the needs of daily outdoor shooting.
All our products have undergone multiple inspections to ensure their quality. It is worth your trust!

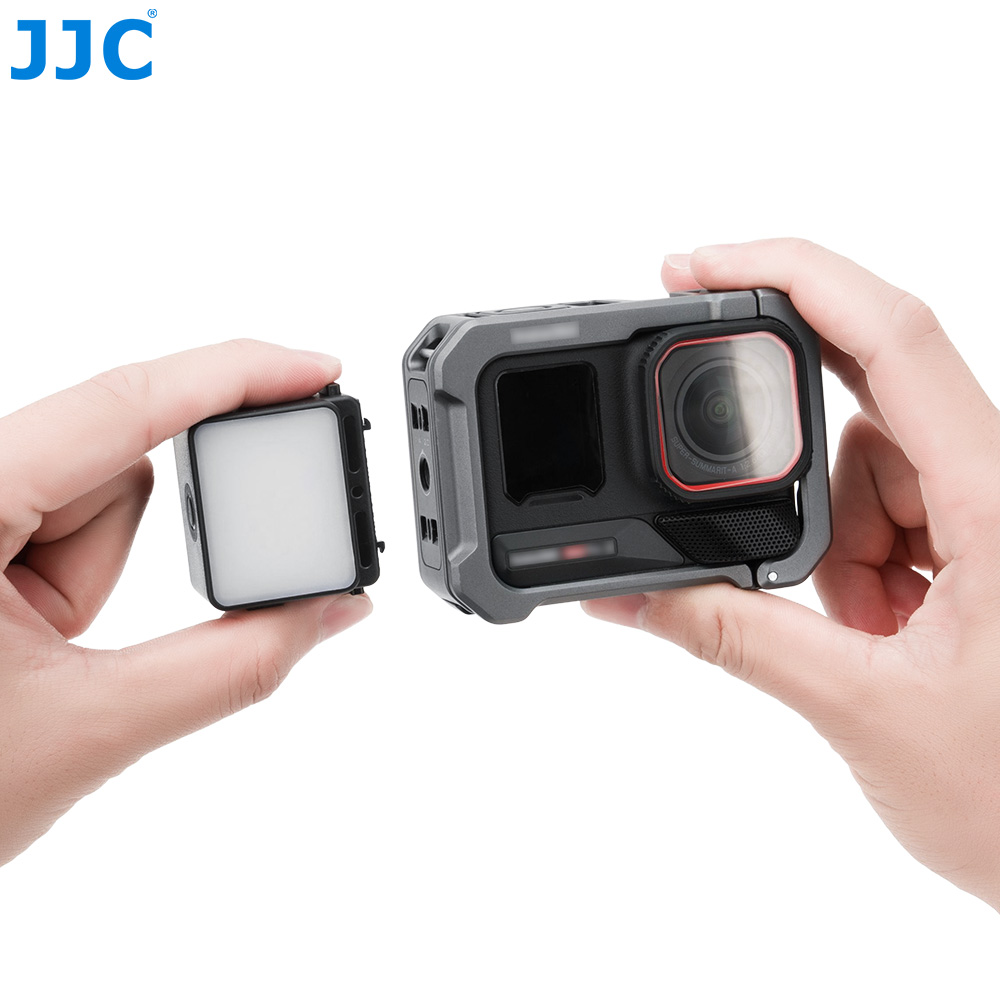

Note: Slide the product into the camera quick-release slot until a clear “click” is heard, and make sure the latches on both sides are fully engaged. Ensure it is securely installed before use.

Product Highlights
Specially designed for Insta36. X4 Air/X5/ACE PRO/ACE PRO2/ACE
Magnetic quick-release design for quick attachment
20 high-quality LED beads for soft, even lighting and enhanced image quality
High color rendering index (Ra95+) for accurate color reproduction
Flicker-free design ensures stable video recording without strobing
6500K ± 200K color temperature delivers natural and clean lighting
Three brightness levels (50% / 75% / 100%) to suit different environments
Simple one-button control: long press to power on/off, short press to switch modes
SOS emergency mode for unexpected situations
Built-in 500mAh lithium battery, fully charged in about 1 hour, provides over 1 hour of runtime at maximum brightness
Convenient USB Type-C charging port
Power-off memory function automatically restores the last setting when turned on
IPX5 waterproof, ideal for outdoor use

Parameters

Built-in Lithium Battery

3.7V / 500mAh

Charging Method

Type-C

Input

5V / 1A

Maximum Power

1.6W

Maximum Luminous Flux

150lm

Flicker or Not

No

Color Rendering Index

≥ 95

Beam Angle

120°

Color Temperature

6500K±200K

LED Chip Type

2835 / 0.2W

Number of LED Chips

20pcs

Charging Time

≈1h

Usage Time

≥ 1h（100% Brightness）

≥ 3h（50% Brightness）

Operating Temperature

-20℃ ～ 50℃

Operating Humidity

≤ 80%RH

Storage Temperature

-20℃ ～ 50℃

Storage Humidity

≤ 95%RH

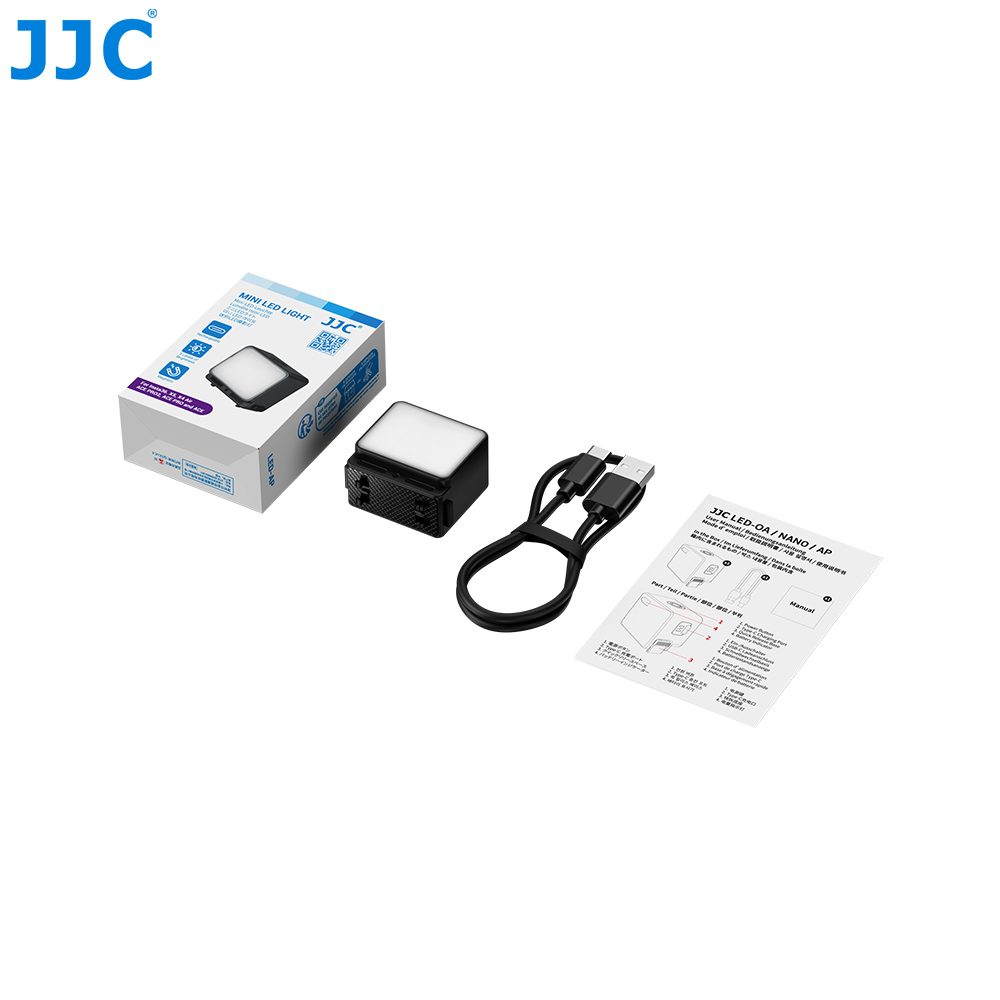

Package List
Mini LED Light ×1
USB Cable ×1

User Manual ×1
